Test & Precision Instrument
1761486, 1760935, 1760936, 1761423, 1761487
LOCATORS
Brand:
Product Name: LOCATORS
Product No: 1761486, 1760935, 1760936, 1761423, 1761487
- 10,000 ohms and less-both ends isolated from grounds.
- Does not locate the path-has to be predetermined and only in direct burial applications 5,000,000 and less.
- Transmitter connected to metallic shield.
- Will trace coax providing the bond is in place at the remote end-will disrupt service.
- No sorting (high Rf bleeds) can trace coax if transmitter connected to braid.
- Low frequency locators need a "path to earth"(dirt), 5000 ft. on an open conductor and 2500 ft. on a metallic pipe at 3 ft. deep.
- Direct connection 4000 ft at 7 ft deep.
Inductive Coupler 1,000 ft at 3 ft deep.
Inductive Antenna 700 ft at 3 ft deep.

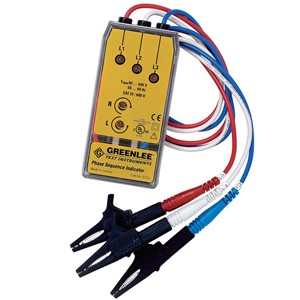

Indicator, Phase Sequence
Brand:
Product Name: Indicator, Phase Sequence
Product No:
- Assissts in correct motor installation by identifying the phases of a three-phase circuit and the rotation of an unenergized motor to prevent damage to motor or electrical system.
- Identifies L1, L2, L3 phases and motor leads and indicates rotation of the motor before installation.
- Easy clockwise and counterclockwise indication.
- Accessories included:(1) 9V battery, carrying case.
Specifications
| Sitaco Ref. | 1761139 |
| Phase Sequence Indicator | (CAT. No. 5702) |
| Overvoltage Protection | CAT III, 600V |
| Motor Rotation Indicator | (CAT. No. 5123) |
| Two LEDs indicate motor rotation |

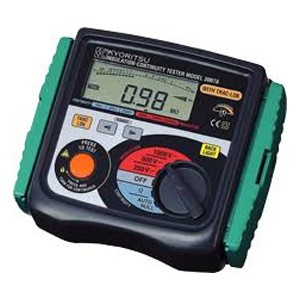

Digital Insulation Tester
Brand:
Drop Shock Proof Meter
Brand:
Digital Multimeter
Brand:

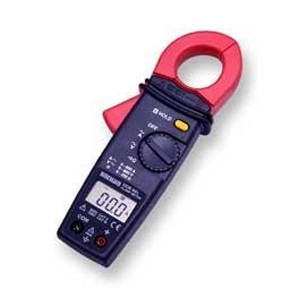

Clamp Meter
Brand:
Phase Indicator
Brand:
