Machine Shop Equipment
1580910

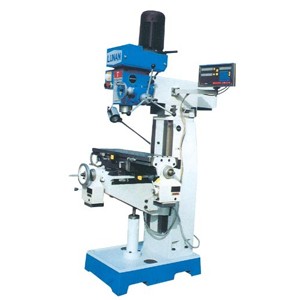

Vertical Milling Machine
Brand:
Product Name: Vertical Milling Machine
Product No: 1580910
| Sitaco Ref. | 1580910 |
| Table size | 254x1370mm(10x54") |
| Long travel | 860mm(34") |
| Cross travel | 400mm(15-3/4") |
| Over arm travel | 550mm(21-5/8") |
| Vertical Knee travel | 430mm(16-7/8") |
| Min/Max.Spindle nose to table surface | 25~485mm(1"~19") |
| Min/Max. Spindle center to column | 150~670mm(5-7/8"~27-1/2") |
| No. of T-solt | 3 |
| Size of T-solt | 16mm(5/8") |
| Max. table loading | 410kgs/903lbs |
| Spindle motor | 5HP |
| Vertical elevating motor | OPTION |
| Number speeds | inf.variable |
| Spindle speeds | 60Hz 60~4200rpm, 50Hz 50~3750rpm |
| Spindle taper | NT40 |
| Quill diameter | 105mm(4") |
| Quill travel | 125mm(5") |
| Quill feeds | 3 steps 0.0015,0.003,0.006” (0.04,0.08,0.14mm) |
| Head swivel | 90 dgree |
| Head tilting | 45 dgree |

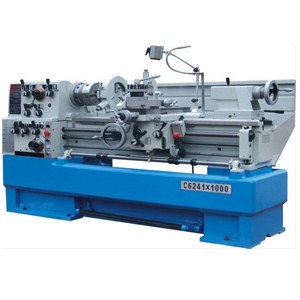

Lathe Machine
Brand:
1581151, 1580007
Lathe Machine
Brand:
Solube Oil Cutting
Brand:

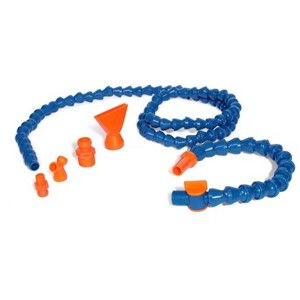

Coolant Hoses
Brand:
Hydraulic Shearing Machine
Brand:
Hydraulic Shearing Machine
Brand:

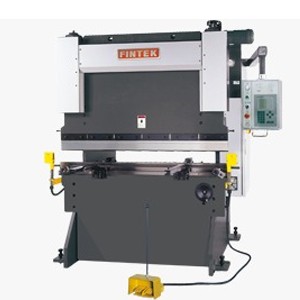

Hydraulic Press Brake
Brand:

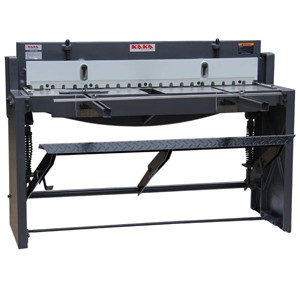

Foot Shear
Brand:
Product Name: Foot Shear
Product No:
- The machine is capable of shearing Mild Steel up to 16 Gauge. In addition, it is ideal for shearing various material, such as Plastic, Lead, Zinc, Aluminium, Brass and Copper.
- Rugged construction exhibits high stability.
- Durable cutting blade.
- Equipped with finger guard and front arm extensions for safety protection.
Sitaco Ref. Capacity Mild Steel Capacity Stainless Steel Cutting Angle Front Front Supporting Range Back Gauge Range Shipping Weight Packing Size 1581167 1.6mm x 1320mm 16GA x 52" 0.9mm x 1320mm 20GA x 52" 1° 40' 600 mm (24") 600 mm (24") 430kg 1700 x 770 x 1350mm
