Machine Shop Equipment
1580877
1580017
Drilling Machine
Brand:
1580023
Drilling Machine
Brand:
1580022
Drilling Machine
Brand:
1580363
Milling Drilling Machine
Brand:
1580784
Milling Drilling Machine
Brand:
1580550

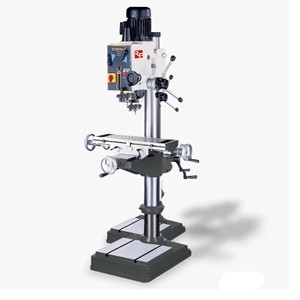

Product Name: Varable Speed Drilling Machine Gear Drive Type
Product No: 1580550
| Sitaco Ref. | 1580550 |
| Drilling capacity | 32 mm |
| Tapping capacity | 19 mm |
| Swing | 530 mm |
| Spindle taper | MT3 |
| Spindle travel | 150 mm |
| Quill diameter | 75 mm |
| Column diameter | 115 mm |
| Spindle nose to table | 925 mm |
| Spindle nose to base | 1225 mm |
| Table size(LxW) | 560x470 mm |
| Table slot | 16 mm |
| Base size(LxW) | 685x485 mm |
| Spindle speed | Hight:245~2000rpm/Low:65~540rpm |
| Motor | 2HP/3 PH |
| Coolant motor | 1/8HP |
15800828

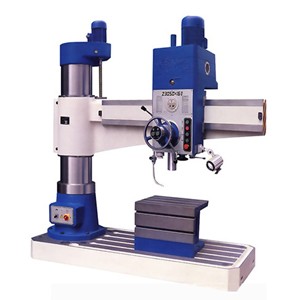

Radial Drilling Machine
Brand:
Product Name: Radial Drilling Machine
Product No: 15800828
| Sitaco Ref. | 15800828 |
| Drilling capacity:in steel | 55mm(2-1/8") |
| Drilling capacity:in cast iron | 66mm(2-1/2") |
| Tapping capacity:in steel | M40mm |
| Tapping capacity:in cast iron | M50mm |
| Max.distance spindle centerline to column(A) | 1245mm(49") |
| Min.distance spindle centerline to column(B) | 330mm(13") |
| Max.height of spindle nose above base(F) | 1230mm(48-1/8") |
| Min.height of spindle nose above base(G) | 330mm(13") |
| Vertical adjustment of radial arm | 680mm(26-7/8") |
| Spindle head traverse along arm | 920mm(36-1/8") |
| Radial arm swivel from-to and back | 360deg |
| Column Dia.(J) | 300mm(11-7/8") |
| Diameter of spindle nose | 80mm(3-1/16") |
| Diameter of spindle in front bearing | 60mm(2-3/8") |
| Taper in spindle | MT5 |
| Stroke of spindle(H) | 250mm(9-7/8") |
| Spindle speeds-number of steps | 12 steps |
| Spindle speeds-speed range-RPM(60Hz) | 4-1500RPM |
| Spindle speeds-speed range-RPM(50Hz) | 37-1300RPM |
| Spindle feeds-number of feed rates | 6 steps |
| Spindle feeds-feed range | 0.05-0.306mm/rev(.002"-0.012"/rev) |
| Size of base(MxN) | 1800 x 800mm(71x31") |
| Height of base(T) | 170mm(6-3/8") |
| Working surface of base | 1230 x 780mm(48x31") |
| Number,width and spacing of T-solt | 16mm(5/8")x#3x190mm(7-1/2") |
| Main drive motor | 3.75kw(5HP) |
| Arm elevation motor | 1.5kw(2HP) |
| Hydraulic pump motor | 0.75kw(1HP) |
| Coolant pump motor | 0.09kw(1/8HP) |
1580338

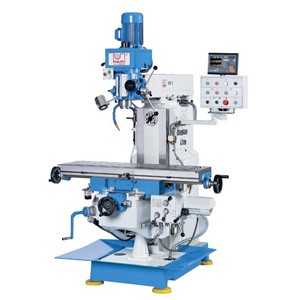

Universal Milling Machine
Brand:
Product Name: Universal Milling Machine
Product No: 1580338
| Sitaco Ref. | 1580338 |
| Table size | 240x1055 mm (9-3/8"x41-1/2") |
| No. of T-slot | 3 |
| Size of T-slot | 16mm(5/8") |
| Max table loading | 300kgs(660lbs) |
| Table swivel (R&L) | 90° |
| Longitudinal travel | 560mm(22") |
| Cross travel | 260mm(10-1/4") |
| Vertical Knee travel | 420mm(17') |
| Min/Max.Spindle center to table surface | 0-320mm(0-12-5/8") |
| Spindle center to overarm end | 120mm(5") |
| Table longitudinal motor | 1HP |
| Range of longtiudinal feed speed (per min) | 6 step 50Hz (17-203mm/min) 60Hz(21-246mm/min) |
| Range of longtiudinal rapid speed (per min) | 50Hz(1713mm/min) 60Hz(2056mm/min) |
| Spindle speeds 6 steap | 50Hz-90-1225RPM 60Hz-108-1470RPM |
| Spindle motor | 3HP |
| Spindle taper | NT #40 |
| Net weight | 1100kgs(2420lbs) |
| Machine height | 1540mm(60-1/2") |
| Machine width x length | 1560x1187mm(61-3/8"x46-3/4") |
